Airstream RV Atlas Motor Home Class B+

1 of 20

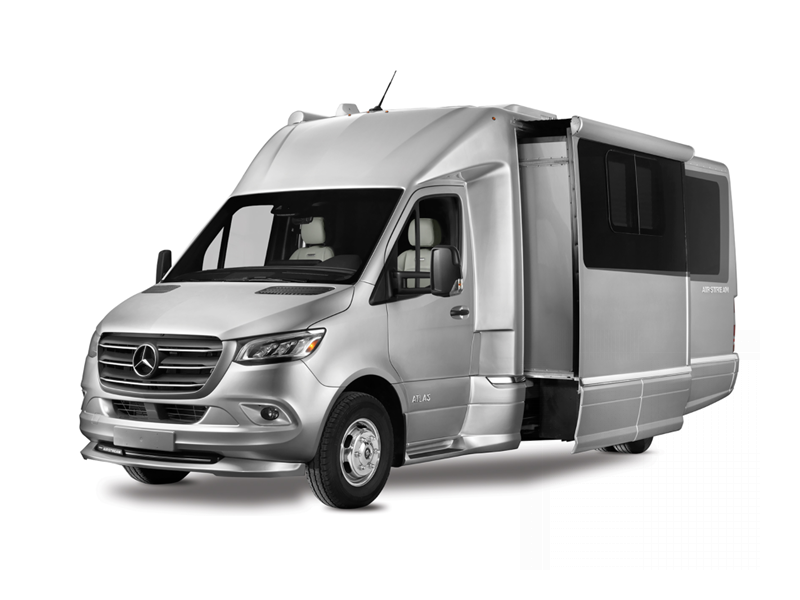

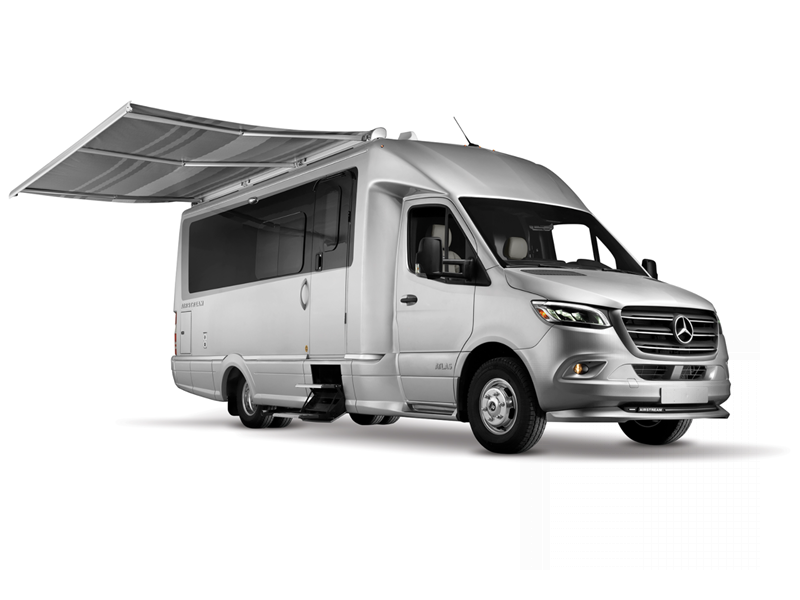

The Atlas Class B+ diesel motorhome by Airstream includes luxurious and thoughtful features plus is elegant and expansive with the power slide out and stunning styling.

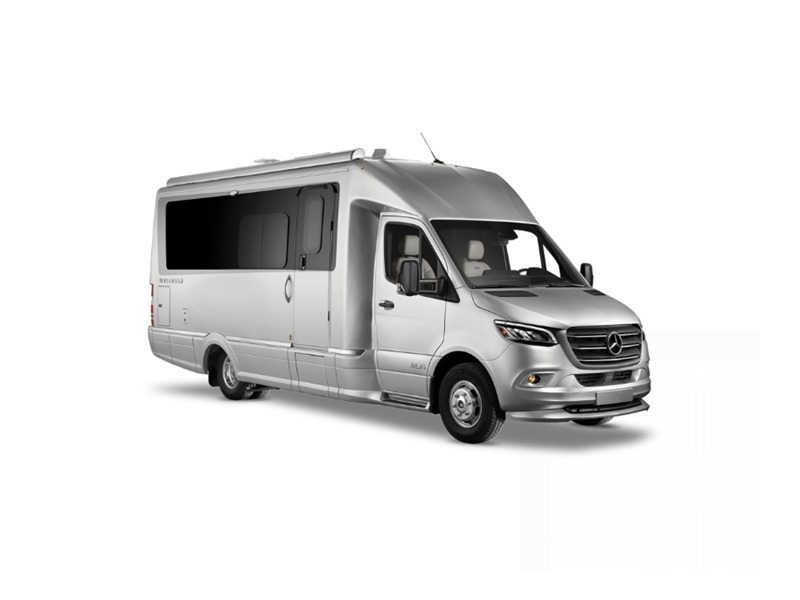

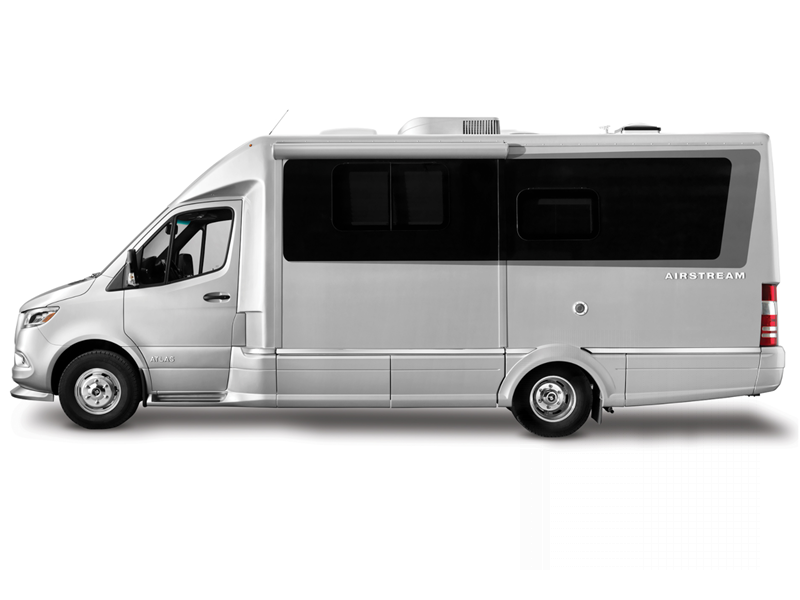

The coach is built on a Mercedes-Benz Sprinter van chassis, and includes active safety systems that automatically provide additional safety on the road such as active brake assist, driver attention assist, and active distance assist, distronic plus. The interior offers a cockpit with advanced in-dash technology and heated, swivel driver/passenger seats, plus the lavatory provides a stand-alone, corner shower with teak wall inlay, a Kohler faucet, shower head and sink, and a riveted aluminum porthole door.

When you are ready to travel like no other, relax in style, and roll with the best, choose an Airstream Atlas Class B+ diesel motorhome!

Floorplans (1)
Features
Manu-Facts

Atlas Murphy Suite

Airstream Atlas Murphy Suite Class B+ diesel motorhome highlights: Murphy Bed ... more about Atlas Murphy Suite

Featured Murphy Suite

Used 2023 Atlas Murphy Suite
- Location: Springfield, MO
- Stock #: R44339A
- MSRP: $229,830.00
- Sale Price $209,894.00

Specifications

Sleeps	2
Slides	1
Length	24 ft 9 in
Ext Width	7 ft 11 in
Ext Height	10 ft 6 in
Int Height	6 ft 6 in
Interior Color	Modern Greige, Classic Canyon, Formal Black, Tommy Bahama Special Edition
Exterior Color	Iridium Silver Metallic
Hitch Weight	4000 lbs
GVWR	12125 lbs
Dry Weight	10129 lbs
Cargo Capacity	1996 lbs
Fresh Water Capacity	20 gals
Grey Water Capacity	31 gals
Black Water Capacity	27 gals
Furnace BTU	19000 btu
Generator	3.6 kW LP with Remote Start
Fuel Type	Diesel
Engine	Mercedes-Benz 2.0L 4-Cylinder High Output
Chassis	Mercedes-Benz Sprinter 4500
Horsepower	211 hp
Fuel Capacity	24.5 gals
Wheelbase	170 in
Available Beds	Murphy
Torque	332 ft-lb
Refrigerator Type	12 Volt
Refrigerator Size	9.1 cu ft
Convection Cooking	Yes
Cooktop Burners	2
Number of Awnings	1
LP Tank Capacity	9.76 gals
Water Heater Type	On Demand Continuous Flow
AC BTU	15000 btu
TV Info	LR 40" LED Widescreen HDTV
Awning Info	Power Armless w/Auto-Retract w/LED Lighting
Gross Combined Weight	15250 lbs
Shower Type	Radius
Electrical Service	30 amp

Similar Floorplans

Murphy Bed Rear Bath

Atlas Features:

Standard Features (2025)

Specifications

Mercedes-Benz® Sprinter 4500 Chassis
Engine: Mercedes-Benz® 2.0L 4-Cylinder High Output Diesel
BlueTEC SCR Technology, 50 State – EPA/CARB Standards
211 HP / 332 lbs. torque
9 Speed Automatic Transmission
Axle Ratio: 4.727
Wheelbase: 170"
MPG: 16-18+ Estimated Highway
Mercedes-Benz® Adaptive ESP® (Electronic Stability Program)
Tow Package Mercedes-Benz® Hitch, 7 Pin Trailer Plug, Brake Control Pre-wired
Tow Capacity Up to 4,000 lbs.
Mercedes-Benz® Trailer Stability Assist System
Air Conditioner: 15,000 BTU Quietstream™ Ducted with Heat Pump
Furnace: 19,000 BTU
Water Heater: 60,000 BTU On-Demand Continuous Flow
Heated Tanks: Fresh, Gray & Waste Tanks (12 volt)
Refrigerator & Freezer: 9.1 cu. ft. (12 volt)
Cooktop: 2 Burner with Integrated Cover
Safety Components: LP Gas Detector, Smoke and CO2 Alarm, Fire Extinguisher, First Aid Kit
Plumbing System: Macerator Pump System w/Electric Retract
TV Antenna: Directional In-motion VHF/UHF
TV Cable: Cable TV Outlets/Hook-ups
TV Satellite: Pre-wired for Satellite Dish
Electrical System: Touch Screen/Touch Pad Electronic Controls with Energy Management System
Converter/Inverter: 50 amp Multi-stage Charger, 1,000 Watt Pure Sine Inverter
Generator: 3.6 kW (LP) with Remote Start
Batteries (Coach): 2 – 100 Ah Deep Cycle Lithium Battle Born Batteries (LiFePO4)
Shore Power: 30 amp / 110 Volt Service
Solar Power: 400 Watt Solar System
Steering Wheel Paddle Shifters: Paddle Shifters

Safety

Active Brake Assist
Active Distance Assist - Distronic Plus
Active Driver Attention Assist
Active Lane Keeping Assist
Crosswind Assist
E-Call Assist
Fire Extinguisher
Four Seat-Belt Positions
Front and Rear Parktronic Parking Assist
High Beam Assist
High Mounted Third Brake Light
Multiple Safety Impact Air Bags
Rear Camera Assist with Always-On Viewing & Adjustable Angle
Side Camera Assist Integrated in Side Mirrors
Smoke, CO2 & LPG Detectors
Traffic Sign Assist
Wet Wiper System

Exterior

110V Outlet, HDMI & Coaxial Output
Air Ride Suspension
BASF Metallic OE Paint with Cut & Buff Finish
Chrome Package (body line trim, grill, license plate holder)
E1 Package (Optional)
Exterior Shower with Hot & Cold Water
Fog Lamps
Frameless Radius-Corner Tilt-Open Windows
Front Lower Spoiler
Hidden Hitch Cover Rear Bumper
Hidden Retracting Screen Door
Hydraulic Leveling Jacks
LED Patio & Awning Lighting
LED Undercarriage Lights with Dimmer
LP Accessory Hook-up (Grill)
Mercedes-Benz® OE Sprinter Tail Lights

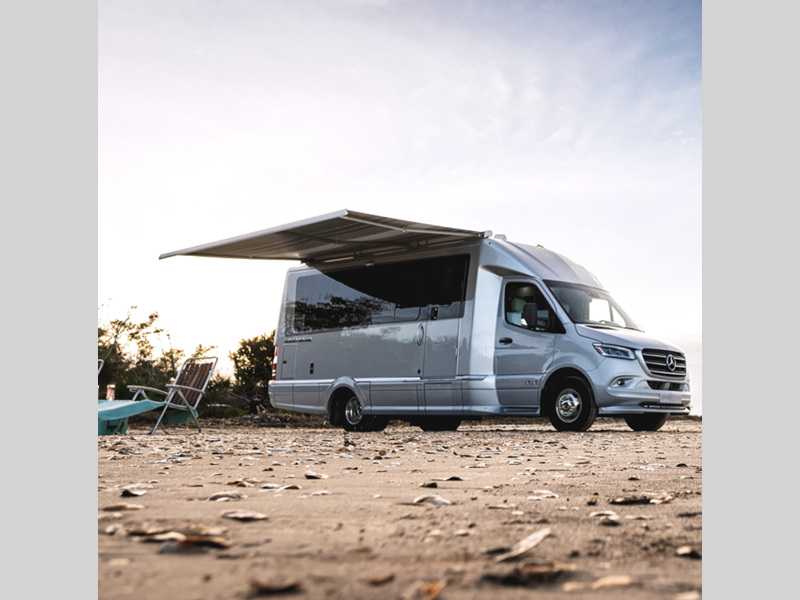

Power Armless Awning with Auto-Retract
Power Entry Step with Hidden Design
Remote Locking Storage Doors with Hidden Latches
Starlink Flat High Performance In-Motion (internet/service plan required)
Storage Compartments with LED Motion Lights
Triple Nickel Chrome Finished Wheels

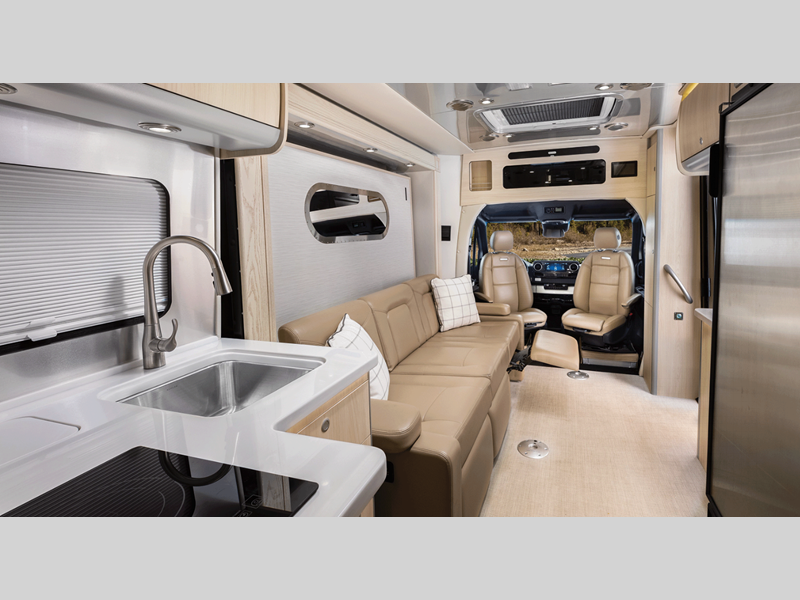

Cockpit

Advanced Multifunctional Steering Wheel
Custom Carpet Floor Mat
Entry Door Lighting
Front Bed System (Optional)
Heated Swivel Driver/Passenger Seats
In-Dash Maintenance Monitoring System
In-Dash Wireless Cell Phone Charging
MBUX Infotainment System (Mercedes-Benz User Experience) Touch Screen, Pinch, Zoom, Voice Recognition, Apple Carplay, Android Capability
Multifunctional Steering Wheel
Overhead Map Lights
Privacy Shades
Rear & Side View Camera Monitor
Tilt & Telescopic Steering Wheel

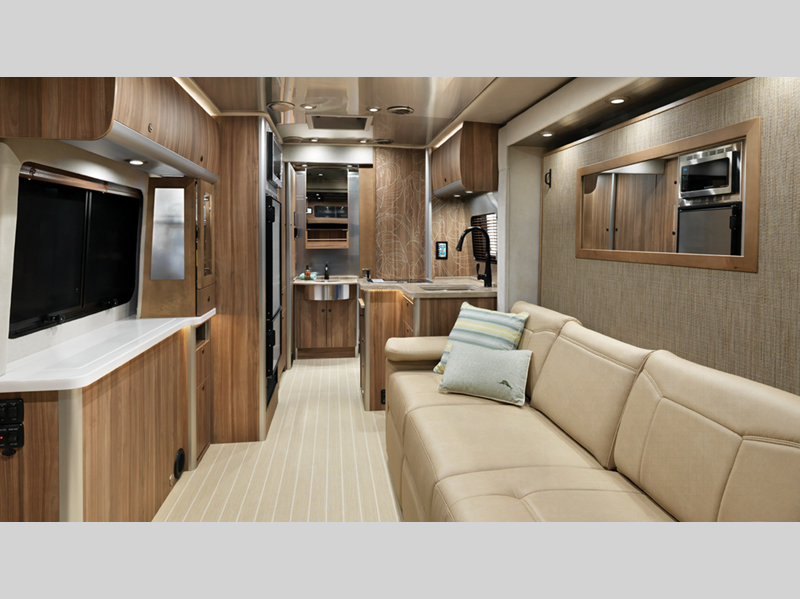

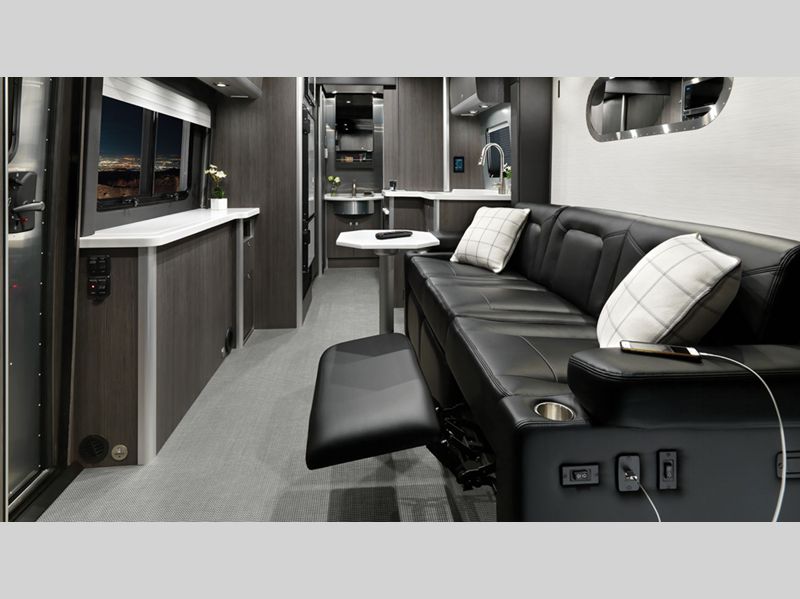

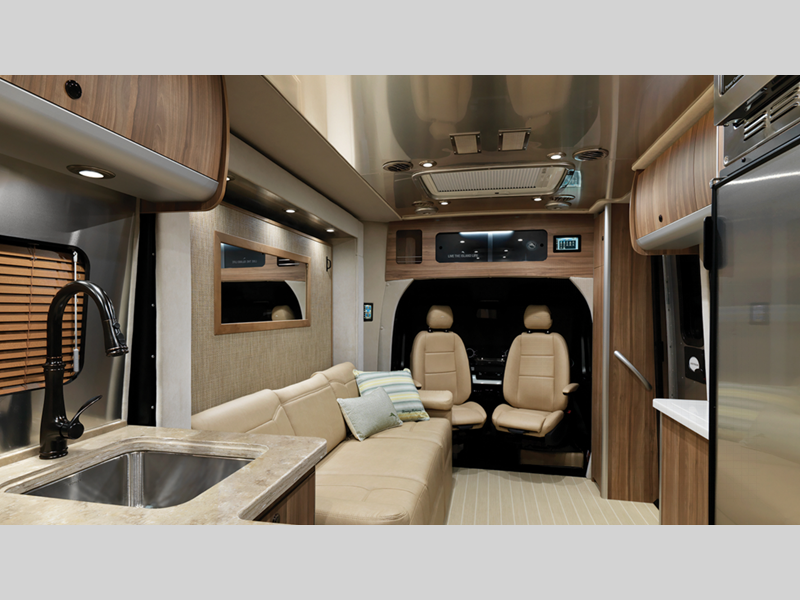

Main Cabin

Adjustable LED Lighting
Flush-Mount Cabinet Hardware & Soft Close Doors
Froli® Ergonomic Bed Support System
LED 40" Widescreen HDTV & Soundbar on Power Lift
Marine Woven Synthetic Flooring
Matte Finish Laminate Cabinetry
Multiplex Control System with 7" Color Touchscreen
Pedestal Table (2)
Power Opening Sunroof Skylight with Screen & Shade

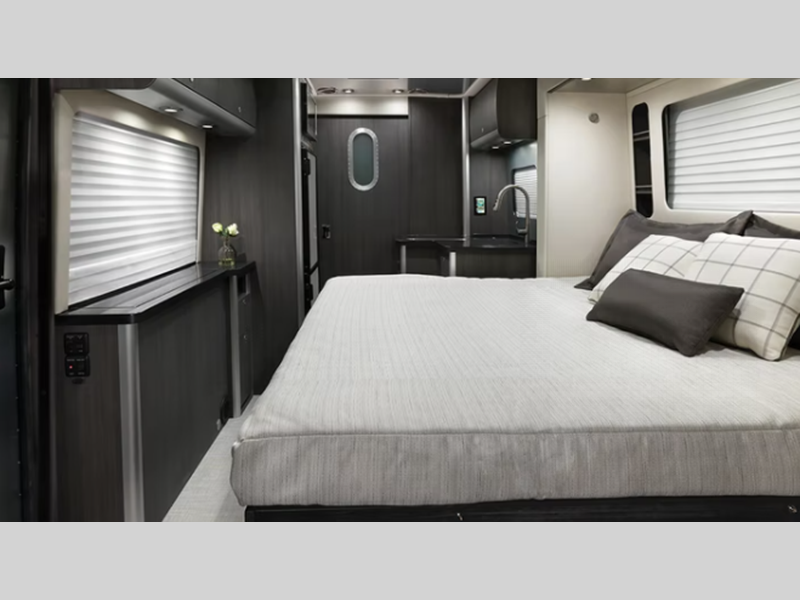

Power Sofa with Integrated Murphy Bed
Power Tilting Oceanair Window Shades
Signature Aluminum Ceiling & Trim
Ultraleather® Seating
USB Charging Ports
Vinyl with Urethane Covering on Walls and Windows
Wardrobe Closet

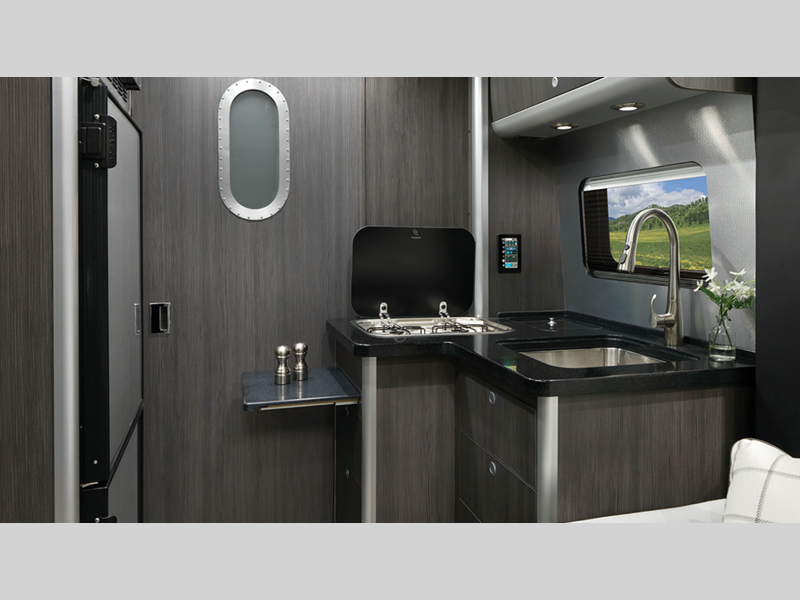

Galley

1.1 Cubic Foot Convection Microwave
Aluminum Refrigerator Fascia
Drop-In Waste Basket with Solid-Surface Cover
Galley Extension Pull-Out Shelf
Kohler® Faucet & Sink with Flush Solid-Surface Cover
Multi-Speed Roof Exhaust Fan with Rain Sensor
Solid-Surface Countertop with Aluminum Backsplash

Bathroom

Cedar Lined Wardrobe Closet
Corner Shower with Teak Wall Inlay
Integrated LED Shower Lighting
Kohler® Faucet, Shower Head & Sink
Mirrored Medicine Cabinet
Multi-Speed Roof Exhaust Fan with Rain Sensor
Porcelain Toilet
Riveted Aluminum Porthole Door
Storage Drawers
Towel Rack

Construction

Azdel Composite Roof/Floor/Wall Material
Curved Composite Storage Doors with Continuous Hinge
Floor – Vacuum-Bonded Aluminum-Framed
Interlocking Extrusion Joints with Huck Rivets
Molded Fiberglass Front & Rear Caps
Roof – Fiberglass Crowned Vacuum-Bonded Aluminum-Framed
Trimless Smooth Fiberglass Body Seams
Walls – Radius Vacuum-Bonded Aluminum-Framed

Please see us for a complete list of features and available options!

All standard features and specifications are subject to change.

All warranty info is typically reserved for new units and is subject to specific terms and conditions. See us for more details.

Due to the current environment, our features and options are subject to change due to material availability.
